Get Base Rotation and Base Offset in Meters

Returns the base rotation and position of the connected headset, expressed in apparent meters.

Overview

The base offset is the translational difference between the current position of the headset and the actual position, that was most recently set by using Set Base Rotation and Base Offset in Meters.The axes of the vector are the same as for Unreal: X is forward, Y is right, Z is up.

Similarly, the base rotation offset is the rotational difference between the current rotation of the headset and the actual rotation, that was most recently set by using Set Base Rotation and Base Offset in Meters. It is expressed as an FRotator object with properties Pitch, Roll, and Yaw.

When you want to change the location of camera in the game space and not to change the actual position of the connected headset, you can change the base offset. Similarly, you can change the base rotation to change the camera rotation.

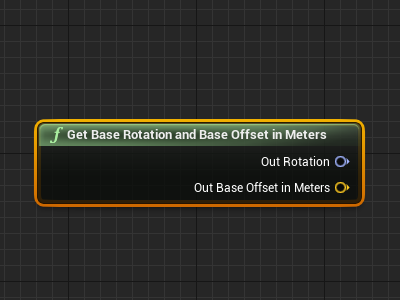

Blueprint

Arguments

• No arguments.

Output

• Out Rotation: The rotational difference between the current rotation of the headset and the actual rotation, that was most recently set by using Set Base Rotation and Base Offset in Meters. It is expressed as an FRotator construct with properties Pitch, Roll, and Yaw.
• Out Base Offset in Meters: The translational difference between the current position of the headset and the actual position, that was most recently set by using Set Base Rotation and Base Offset in Meters. It is expressed as an FVector construct that translates the headset position into the (0,0,0) point, in meters.
